KW V4 Clubsport
For road-legal vehicles with sports setup
- Uncompromising technology transfer from the race track to the road
- Three-way adjustable damper setup preconfigured from delivery
- Parts certificate included with delivery
Your KW V4 Clubsport: All features at a glance

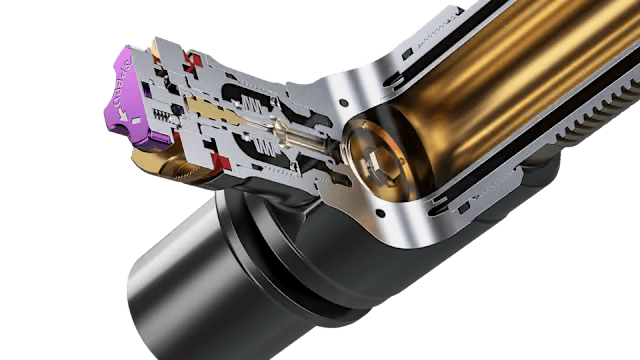

TVCLH-A: Simple adjustment of the compression damping
With the click adjustment of our TVCLH-A technology (Twin-Valve Compression Lowspeed/Highspeed Adjustable), the low and high-speed forces of the compression stage can be adjusted separately. The low-speed adjustment is made directly on the reservoir using the purple adjustment knob. High-speed forces are adjusted using the larger golden knob on the reservoir.

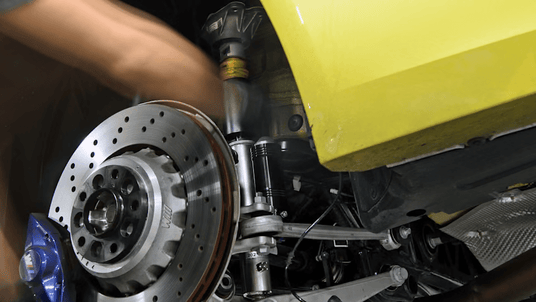

TVR-A: Change the rebound damping with the flick of the wrist
Thanks to the TVR-A (Twin Valve Rebound-Adjustable) technology, the rebound stage of the KW V4 Clubsport can be adjusted independently of the compression stage. With 16 clicks on the purple rebound knob, you can vary between more comfort or more control.
V4 Clubsport Technology in detail

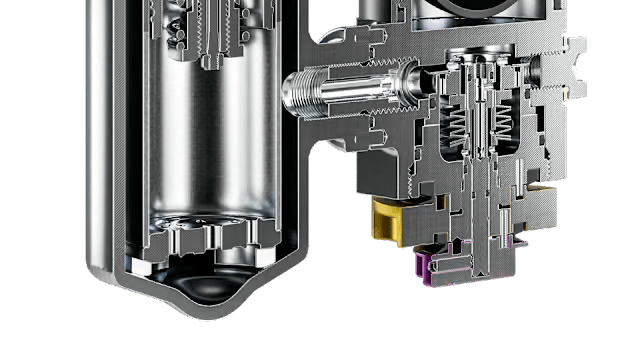

The compression damping can be adjusted with 6 clicks at low speed and 14 clicks at high speed. The compression stage is already ideally set on delivery.
The blow-off characteristic ensures optimum support for the vehicle body and guarantees a constant connection to the road.
The rebound can be further adjusted after installation with 16 clicks. The rebound damping is already ideally set on delivery.
Depending on the vehicle type, aluminum Unibal top mount have a scalable camber adjustment and are optionally adjustable in caster.
Value and quality
Parts certificate
Parts certificate despite use on the racetrack? That's possible! In the enclosed parts certificate you will find all the important information on the installation and approval of your KW V4 Clubsport coilover suspension in conjunction with your vehicle model. You will also find precise vehicle classifications, requirements and instructions for safe installation.
INOX Line
Durable corrosion resistance - for several years. KW suspension struts are made of high-quality stainless steel. In contrast to other solutions, no coatings can be removed when adjusting the lowering. This guarantees 100% corrosion resistance and an unlimited service life.

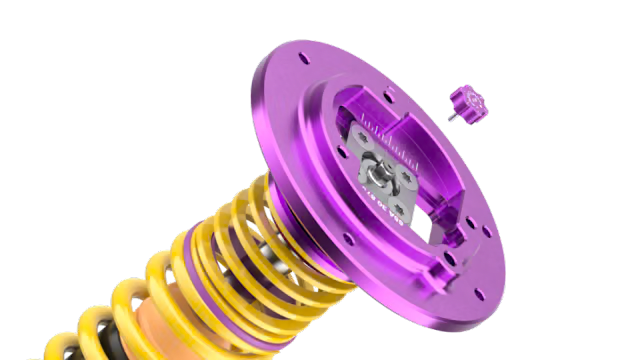

Uniball support bearing
Depending on the vehicle type, the aluminum Unibal support bearings have a scalable camber adjustment and can also be optionally adjusted in the caster. This allows the camber angle to be adjusted so that maximum tire contact area is achieved when cornering and handling becomes even more direct.

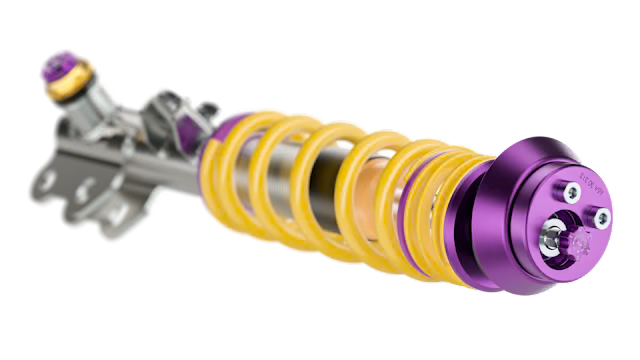

Composite spring seat
The height-adjustable KW spring plate is made from a resistant polyamide composite material. In contrast to anodized aluminum spring plates, the polyamide composite material prevents possible oxidation. The combination of INOX Line and stainless steel inlay ensures the long-term functionality of the height adjustment.
